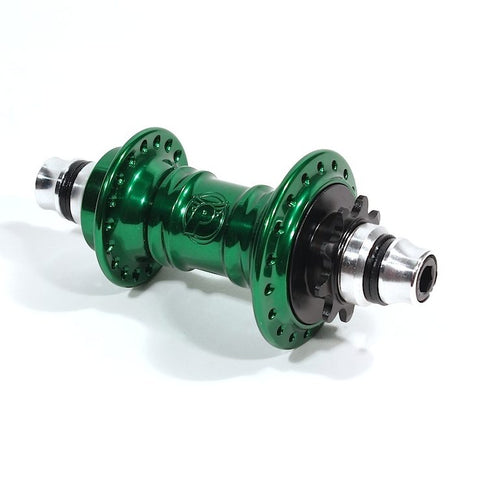

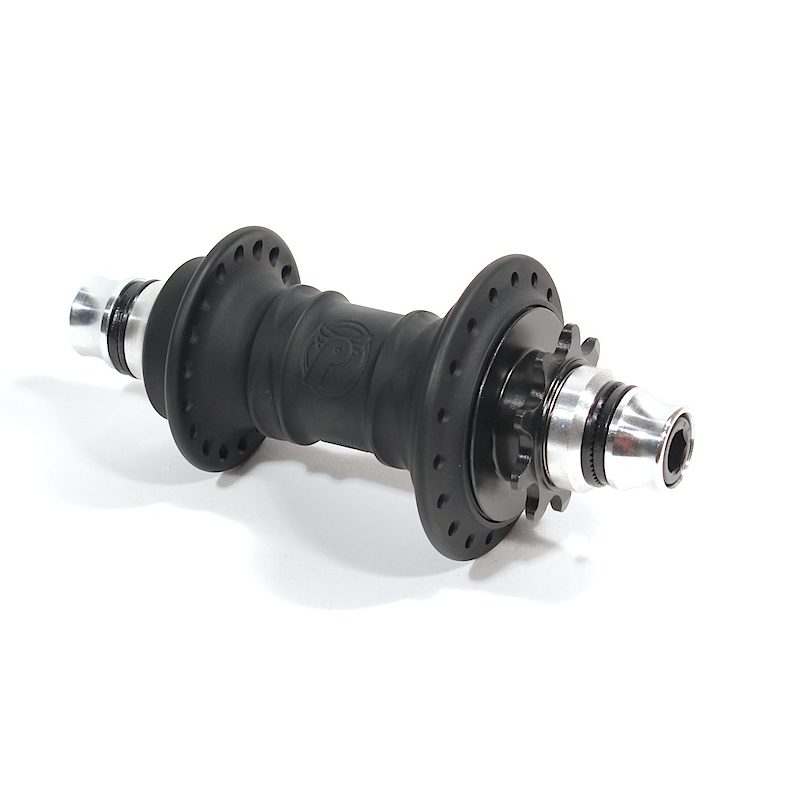

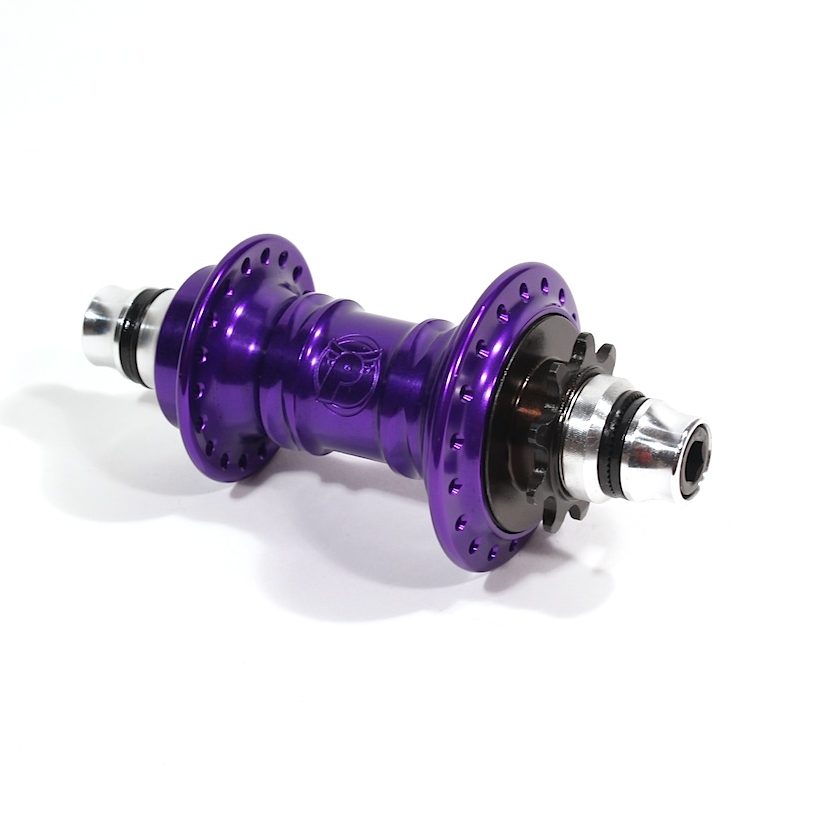

MINI CASSETTE HUB

MINI CASSETTE HUBSET

BUILD YOUR OWN HUBSET (BYOH)
Choices for following:
-Hub Color
-Spoke holes/Drive side
-Axles(Front & Cassette)
-Axle Bolts(Front & Cassette):  Choose any Chromo bolt option at NO EXTRA CHARGE!
-Cassette Driver
-Cog

-Profile Racing designed the Mini Hubset to be the best all around hubs available. They are suitable for trails, racing, street, and park use.

• • Aluminum or Chromoly hollow 3/8″axle for dramatic weight savings
  • Bolt choices for 3/8″ threaded  axle:
    -Standard 3/8 socket head bolts(8mm hex)- come with polished Volcano cones
    -17mm Hex Head outer w/8mm internal hex
    -Button Head w/8mm internal hex
  • CrMo or Ti 14mm axle options(14mm Alum nuts included) .
  • CrMo or Ti one-piece drivers.
  • Chromoly or Titanium splined drivers for Profile Cogs.
  • Standard CrMo Cogs, or upgrade to Aluminum or Elite CrMo Cogs.
  • RHD or LHD(36h only)
  • 36h or 28h(RHD Only)
  • Standard BMX 110mm(rear) & 100mm(front) hub widths
  • 3/8’s aluminum axle NOT intended for heavy street riding.

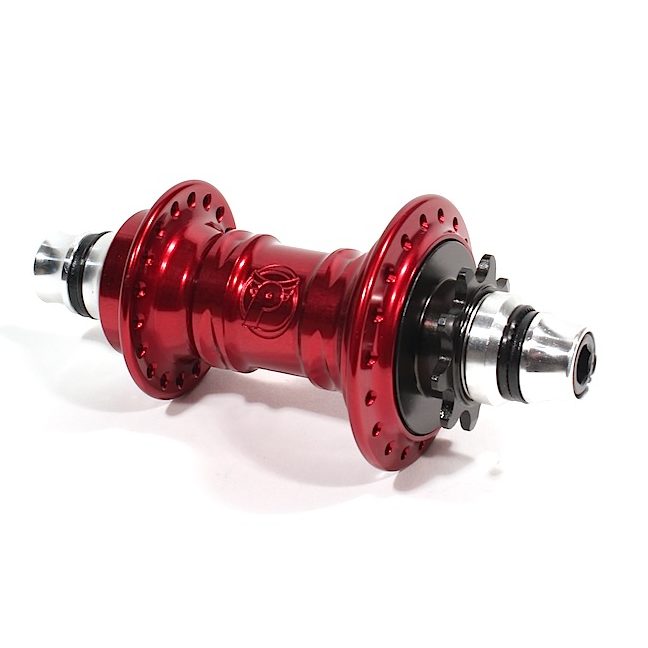

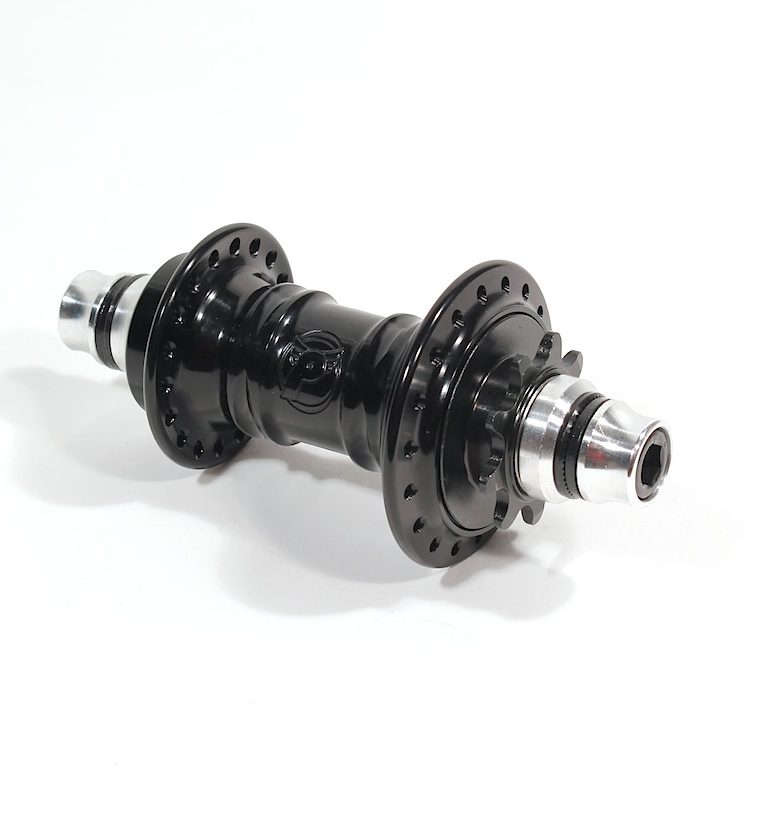

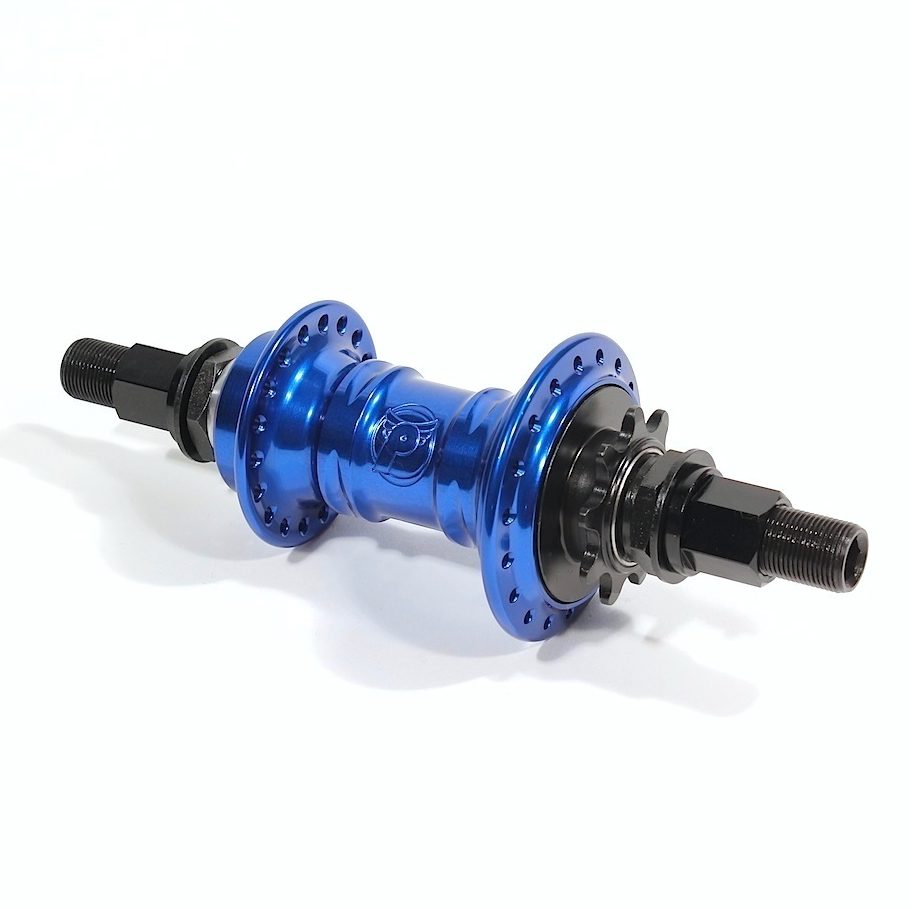

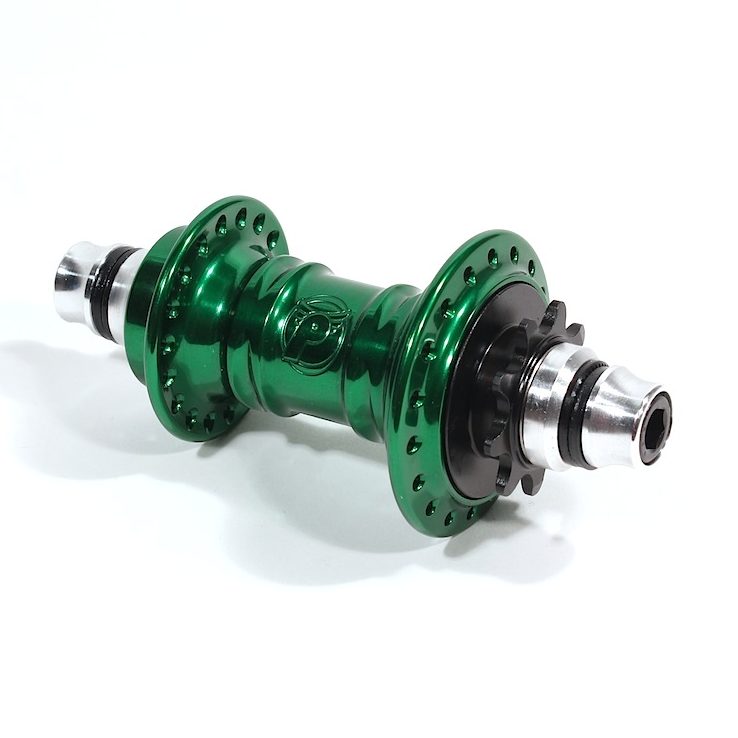

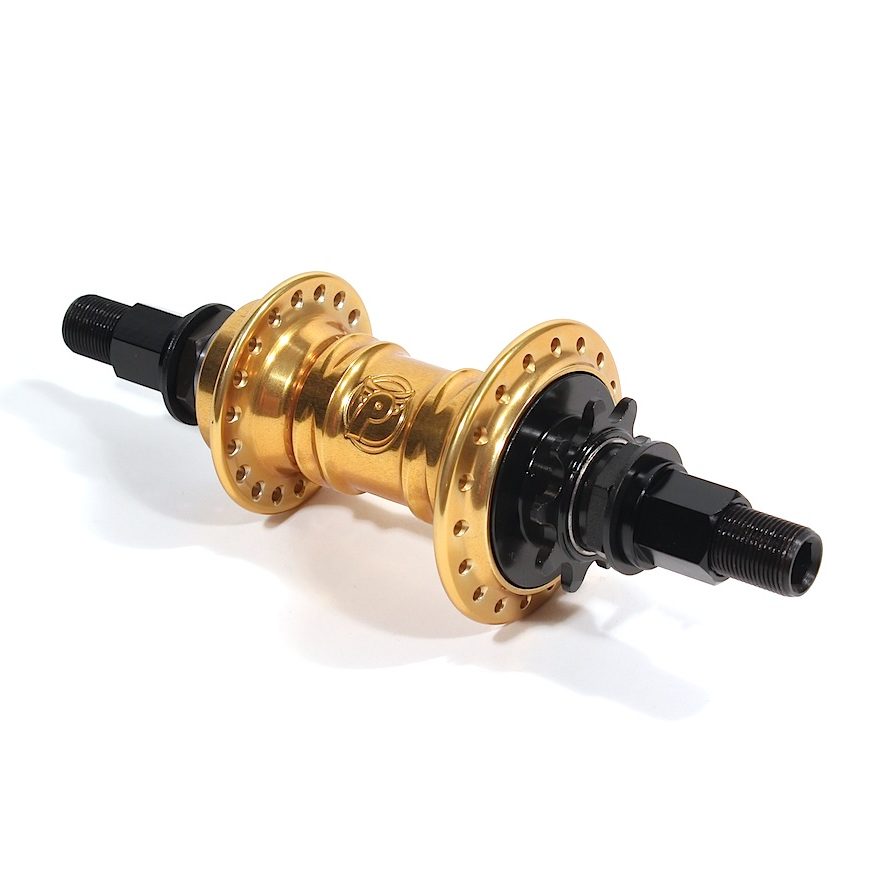

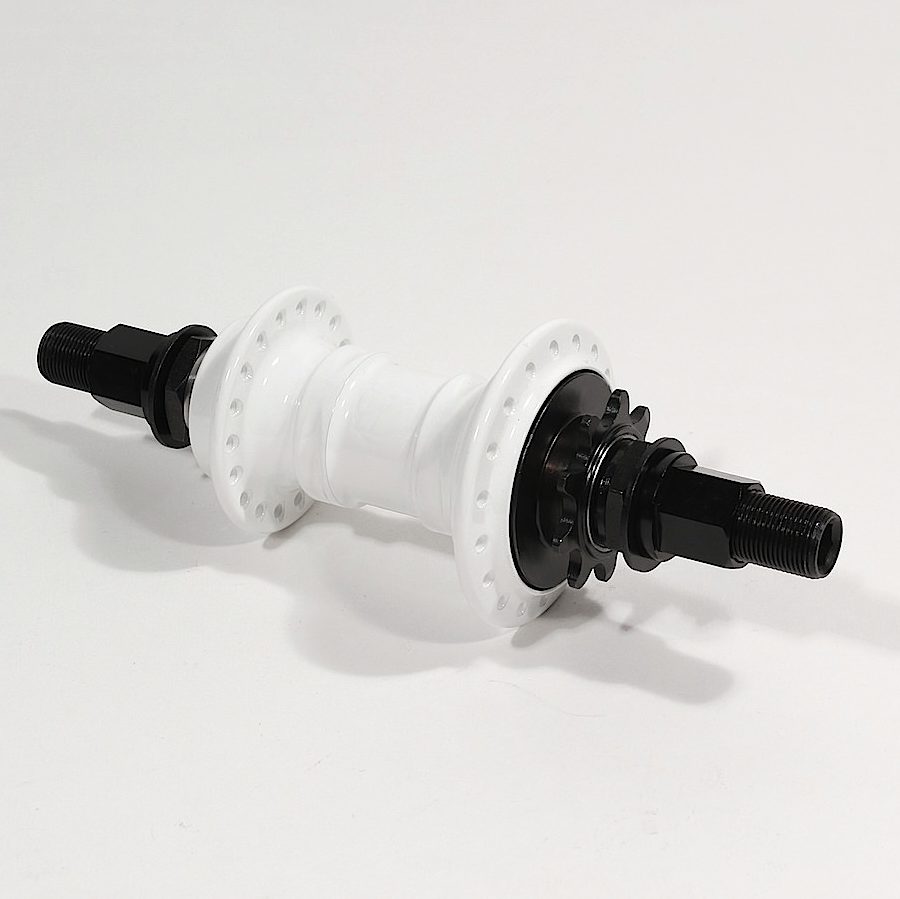

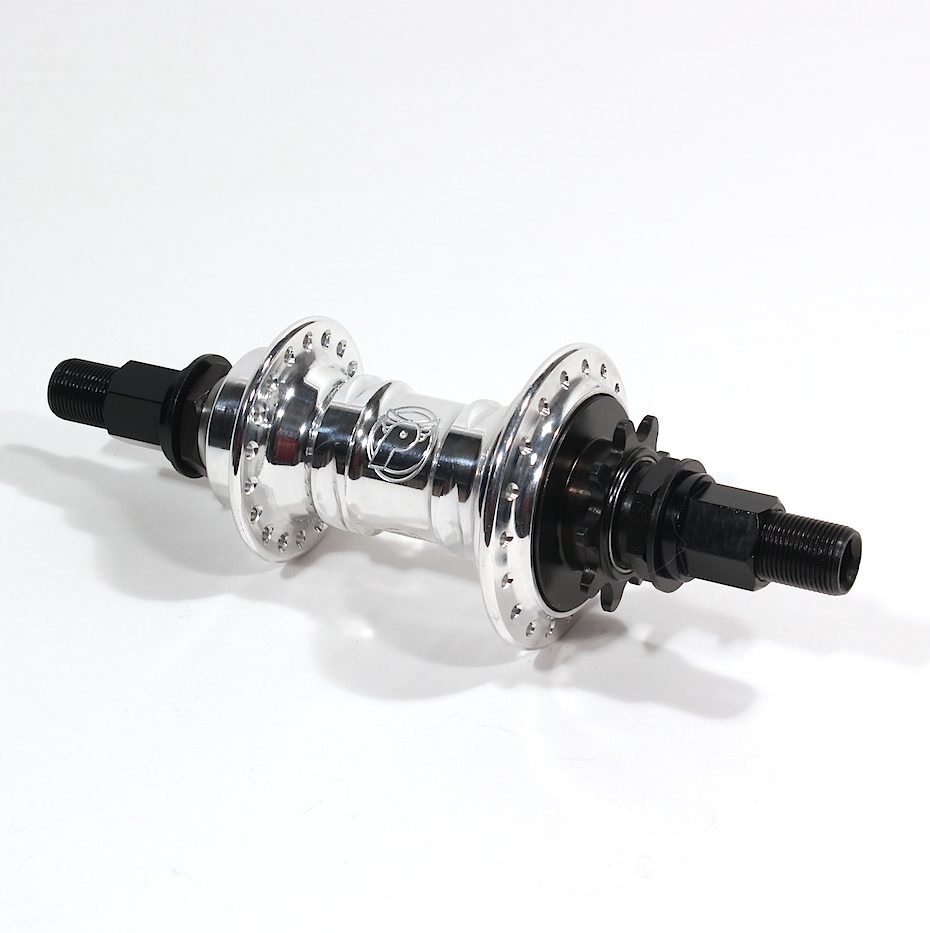

Colors: Red, Black, Blue, Polished, Gold , Green, Purple, Aqua, Matte Black, White

Mini Front Hub Weights:
Hub w/ 3/8 CrMo Axle Bolts: 8.15oz / 232g
Hub w/ 3/8 Ti Axle Bolts: 7.4oz / 206g
Hub w/ 14mm Mini Front GDH CrMo Axle + Al Axle Nuts: 11.35oz / 323g

Mini Cassette Hub Weights:
Hub w/ CrMo Axle Bolts with 9t CrMo Driver: 13.1oz / 372g
Hub w/ CrMo Axle Bolts with 9t Ti Driver: 11.95oz / 339g
Hub w/ Ti Axle Bolts with 9t CrMo Driver: 12.25oz / 348g
Hub w/ Ti Axle Bolts with 9t Ti Driver: 11.1oz / 316g
Hub w/14mm CrMo GDH Axle & 9t CrMo Driver: 17.65oz / 501g
Hub w/14mm CrMo GDH Axle & 9t Ti Driver: 16.5oz / 4681g
Hub w/14mm Ti GDH Axle & 9t Ti Driver: 13.4oz / 379

Profile Hubs are custom orders only. We only carry a few in stock. Email us for specific orders.
